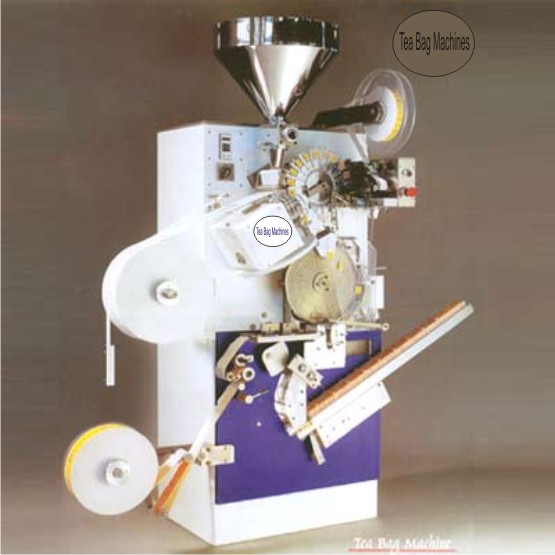

Automatic tea bag machine for packing tea in heat-seal filter paper single chamber tea bags, with thread and tags .High performance, constant dosage extreme simplicity and mechanical strength are the most outstanding features of this packer.Its design allows its operation and maintenance by normally trainedTechnical personnel.

Automatic tea bag machine for packing tea in heat-seal filter paper single chamber tea bags with thread and tags with overwrap attachment is also manufactured.

Features

  • Filling system approved by Weights and Measures act
  • Compact Construction
  • Easy Maintenance and servicing
  • Low power consumption
  • No Compressed air required

Technical Data

  • Output : 100 tea bags per minute
  • Size of tea bags: 62.5mm* 50 mm
  • Size of overwrap: 70mm* 65 mm
  • Size of tag: 24mm* 28mm
  • Dosing: 6cubic cm ( max) Approx. 2.2 g of black tea fannings
  • Power Consumption: 0.5 HP + 400W
  • Net weight: 565 Kg
  • Gross Weight : 725 Kg
  • Packing case dimensions: 1250mm* 1000mm* 1860mm
